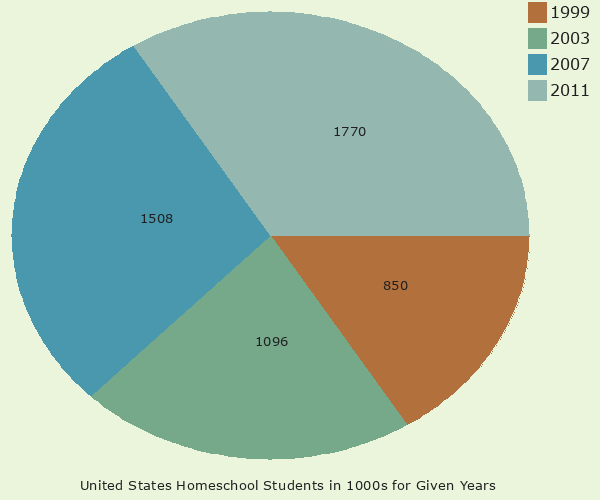

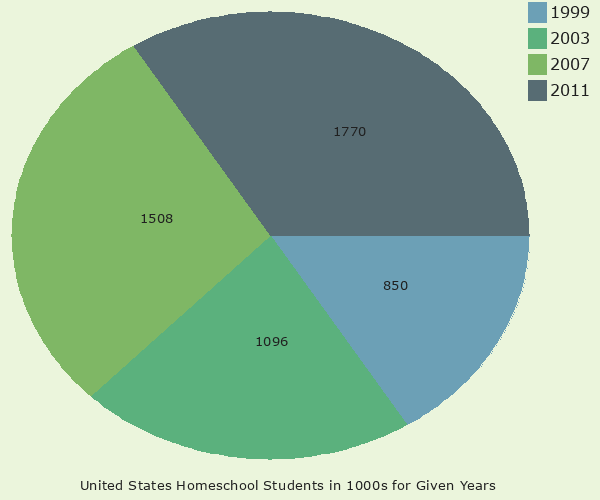

This GD example program demonstrates the code for an example program that demonstrates how to draw a labeled 2D pie chart with GD and create a png image.
<?php function DrawPieChart2D($iImageWidth, $iImageHeight, $dacData, $sGraphLabel) { $qFont = './verdana.ttf'; $qImage = imagecreate($iImageWidth, $iImageHeight); $iGraphWidth = $iImageWidth - 80; $iGraphHeight = $iImageHeight - 50; $iCenterX = round($iGraphWidth/2) + 10; $iCenterY = round($iGraphHeight/2) + 10; $dTotal = array_sum($dacData); $dInitialAngle = 0; // Fill in the background $qBackgroundColor = imagecolorallocate($qImage, 235, 245, 220); imagefilledrectangle($qImage, 0, 0, $iImageWidth, $iImageHeight, $qBackgroundColor); $dLegendDeltaY = 2; $qTextColor = imagecolorallocate($qImage, 32, 32, 32); foreach($dacData as $qLabel=>$qValue) { $dFinalAngle = ($qValue/$dTotal) * 360 + $dInitialAngle; $qCurrColor = imagecolorallocate($qImage, 60 + rand(0, 127), 60 + rand(0, 127), 60 + rand(0, 127)); imagefilledarc($qImage, $iCenterX, $iCenterY, $iGraphWidth, $iGraphHeight, $dInitialAngle, $dFinalAngle, $qCurrColor, IMG_ARC_PIE); $dVectorX = $iCenterX + (cos(deg2rad(($dInitialAngle+$dFinalAngle)/2))*($iGraphWidth/4)); $dVectorY = $iCenterY + (sin(deg2rad(($dInitialAngle+$dFinalAngle)/2))*($iGraphHeight/4)); $dInitialAngle = $dFinalAngle; imagettftext($qImage, 10, 0, $dVectorX, $dVectorY, $qTextColor, $qFont, $qValue); // Legend imagefilledrectangle($qImage, $iGraphWidth+8, $dLegendDeltaY, $iGraphWidth+26, $dLegendDeltaY+20, $qCurrColor); imagettftext($qImage, 12, 0, $iGraphWidth+30, $dLegendDeltaY + 16, $qTextColor, $qFont, $qLabel); $dLegendDeltaY += 26; } imagettftext($qImage, 10, 0, $iImageWidth/2 - 220, $iImageHeight - 10, $qTextColor, $qFont, $sGraphLabel); imagearc($qImage, $iCenterX, $iCenterY, $iGraphWidth, $iGraphHeight, 0, 360, $qBackgroundColor); return $qImage; } $dacData = array(1999=>850, 2003=>1096, 2007=>1508, 2011=>1770); $qPieChartImage = DrawPieChart2D(600, 500, $dacData, "United States Homeschool Students in 1000s for Given Years"); header('Content-type: image/png'); imagepng($qPieChartImage); imagedestroy($qPieChartImage); ?>
